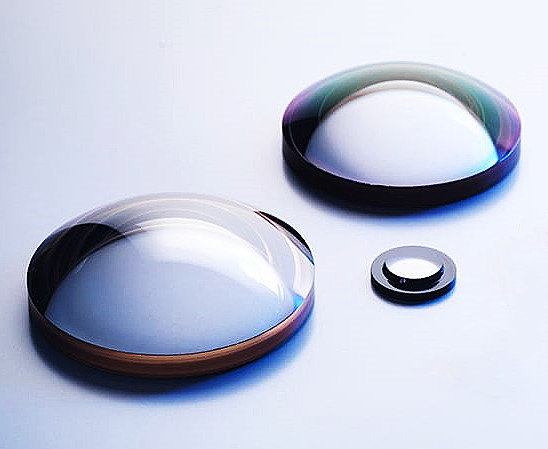

Aspherical Lenses

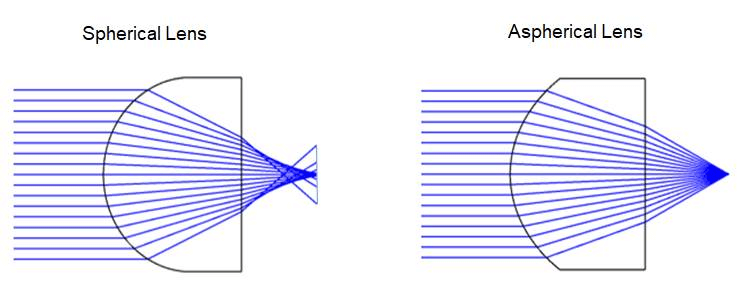

The aspherical lenses can significantly correct spherical aberrations and enhance image quality comparing to spherical lenses.
Sometimes a complex multi-element spherical system can be replaced by one aspheric lens, to achieve a lighter and more compact optical system.
The design has higher transmittance and costs less than the multi-lens spherical design, especially in volume production.
We have extensive experience producing aspheric lenses for a broad variety of applications ranging from ophthalmic instruments and surgical devices, telescopes and cameras, laser equipments, metrology and analytical instruments, to defense applications.
Available manufacturing materials including optical glass, ZnSe, ZnS, BaF2, GaAs, and chalcogenide glass.

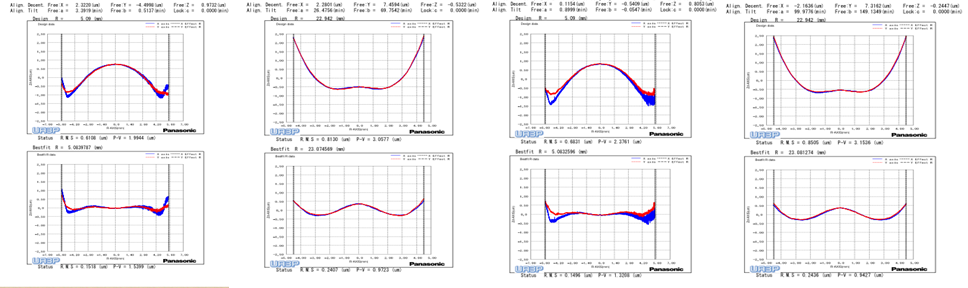

At Photonway Technology, quality control is essencial throughout the whole manufacturing process. We use metrology equipments including profilometers, laser interferometers and electron microscopes, which ensures that each precision lens achieves the appropriate form accuracy and surface quality at every manufacturing stage.
Inspection report will be provided along with shipment.
Typical Specifications
| Material: | BK7, B270, Borosilicate, ZnSe, ZnS, BaF2, GaAs, and more |
| Diameter: | 10-250 mm |
| Diameter Tolerance: | +0/-0.02mm |
| Center Thickness Tolerance: | 0.05mm |
| Surface Quality: | 40-20 S/D; 20-10 S/D for infrared material asphere after coating. |
| Asphere figure error P-V: | ±1 µm (<0.6 µm available on request) |
| Aspherical equation: | Customer specific |
| Centration: | 1 arcmin |
| Coating: | Customer specific |
*Production capacity is dependent on your specifications and materials.
*For extremely high quality needs in precision applications, please contact our engineers to learn more about our manufacturing capabilities.
Contact our engineers to discuss your system-level custom requirements for the aspheric lenses, or receive an expedited quote.
